SB Series Soft Jaws – Metric

Highly functional design allows for easy part loading and ejection to facilitate automated machining.

The SB Series Soft Jaws are one of Kitagawa’s high quality original equipment offerings.

Contact Us

[contact-form-7 id=”10540″ title=”Product Page Contact”]

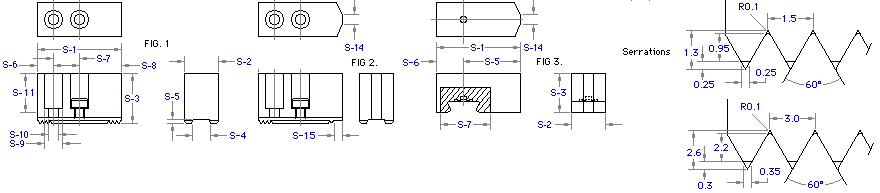

DIMENSIONS (DIMENSIONS IN MILLIMETERS)

MODEL	S-1	S-2	S-3	S-4	S-5	S-6	S-7	S-8	S-9	S-10	S-11	S-12	S-14	S-15	Serrations	Fig.
SB04C1	48	19	23	8	3	8	15	25	11	6.6	15	M6	6		1.5×60°	2
SB04C1-036	48	19	36	8	3	8	15	25	11	6.6	28	M6			1.5×60°	1
SB04C1-048	48	19	48	8	3	8	15	25	11	6.6	40	M6			1.5×60°	1
SB04C1T	48	19	23	8	3	8	15	25	11	6.6	15	M6			1.5×60°	1
SB04C1T048	48	19	48	8	3	8	15	25	11	6.6	40	M6			1.5×60°	1
SB04B1	55	23	25	10	4	13	14	28	13.5	8.5	16	M8	3	13	1.5×60°	2
SB04B1-036	55	23	36	10	4	13	14	28	13.5	8.5	27	M8	3		1.5×60°	2
SB04B1-048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8	3		1.5×60°	2
SB04A1T	55	23	25	10	4	13	14	28	13.5	8.5	16	M8			1.5×60°	1
SB04A1T048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8			1.5×60°	1
SB04N1	49.5	23	23	10	4	10	14	25.5	13.5	8.5	14	M8	4		1.5×60°	2
SB04N1-036	49.5	23	36	10	4	10	14	25.5	13.5	8.5	14	M8			1.5×60°	1
SB04N1-048	49.5	23	48	10	4	10	14	25.5	13.5	8.5	14	M8			1.5×60°	1
SB05C1	57	23	31	10	3	10	18	29	13.5	8.5	22	M8	12		1.5×60°	2
SB05C1-038	57	23	38	10	3	10	18	29	13.5	8.5	29	M8			1.5×60°	1
SB05C1-053	57	23	53	10	3	10	18	29	13.5	8.5	44	M8			1.5×60°	1
SB05C1T	57	23	31	10	3	10	18	29	13.5	8.5	22	M8			1.5×60°	1
SB05C1T053	57	23	53	10	3	10	18	29	13.5	8.5	44	M8			1.5×60°	1
SB05B1	62	23	27	10	4	14	19	29	13.5	8.5	18	M8	12	14	1.5×60°	2
SB05A1-038	62	23	38	10	4	14	19	29	13.5	8.5	29	M8			1.5×60°	1
SB05A1-053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5×60°	1
SB05A1T	62	23	27	10	4	14	19	29	13.5	8.5	18	M8			1.5×60°	1
SB05A1T053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5×60°	1
SB05N1	54	23	25	10	4	12	14	28	13.5	8.5	16	M8	5		1.5×60°	2
SB05N1-038	54	23	38	10	4	12	14	28	13.5	8.5	29	M8			1.5×60°	1
SB05N1-053	54	23	53	10	4	12	14	28	13.5	8.5	44	M8			1.5×60°	1
SB06B1	72	31	32	12	5	15	20	37	17	11	20	M10	12	15	1.5×60°	2
SB06A1-066	72	36	66	12	5	15	20	37	17	11	54	M10			1.5×60°	1
SB06A2	75	32	36	12	6	19	20	36	17	11	23	M10			3.0×60°	1
SB06A2-057	75	32	57	12	6	19	20	36	17	11	44	M10			3.0×60°	1
SB06A2-077	75	32	77	12	6	19	20	36	17	11	64	M10			3.0×60°	1
SB06A1T	72	31	32	12	5	15	20	37	17	11	20	M10			1.5×60°	1
SB06A1T066	72	31	66	12	5	15	20	37	17	11	54	M10			1.5×60°	1
SB06C1	76.5	40	37	14	5	15	25	36.5	19	13	22	M12			1.5×60°	1
SB06L1A	66	26	28	12	5	12	20	34	17	11	16	M10			1.5×60°	2
SB06L1T	66	26	28	12	5	12	20	34	17	11	15	M10	5	12	1.5×60°	1
SB08B1	95	35	38	14	5	24	25	46	19	13	23	M12	12	20	1.5×60°	2
SB08A1-056	95	35	56	14	5	24	25	46	19	13	41	M12			1.5×60°	1
SB08A1-076	95	35	76	14	5	24	25	46	19	13	61	M12			1.5×60°	1
SB08A2	95	35	42	14	6	24	25	46	19	13	26	M12			3.0×60°	1
SB08A2-077	95	35	77	14	6	24	25	46	19	13	61	M12			3.0×60°	1
SB08A1T	95	35	38	14	5	24	25	46	19	13	23	M12			1.5×60°	1
SB08A1T056	95	35	56	14	5	24	25	46	19	13	41	M12			1.5×60°	1
SB08A1T076	95	35	76	14	5	24	25	46	19	13	61	M12			1.5×60°	1
SB10B1	110	40	42	16	5	30	30	50	19	13	27	M12	15	20	1.5×60°	2
SB10A1	110	40	42	16	5	30	30	50	19	13	27	M12	15	20	1.5×60°	1
SB10A1-056	110	40	56	16	5	30	30	50	19	13	41	M12			1.5×60°	1
SB10A1-080	110	40	80	16	5	30	30	50	19	13	65	M12			1.5×60°	1
SB10A1-116	110	40	116	16	5	30	30	50	19	13	101	M12			1.5×60°	1
SB10A2Q	110	40	42	16	6	30	30	50	19	13	26	M12			3.0×60°	1
SB10A2Q080	110	40	80	16	6	30	30	50	19	13	64	M12			3.0×60°	1
SB10A2	110	40	42	16	6	30	30	50	19	13	26	M12			3.0×60°	1
SB10A2-080	110	40	80	16	6	30	30	50	19	13	65	M12			3.0×60°	1
SB10A1T	110	40	42	16	5	30	30	50	19	13	27	M12			1.5×60°	1
SB10A1T080	110	40	80	16	5	30	30	50	19	13	65	M12			1.5×60°	1
SB12A1	129	50	50	18	5	39	30	60	23	15	30	M14			1.5×60°	1
SB12A1-090	129	50	90	18	5	39	30	60	23	15	70	M14			1.5×60°	1
SB12C1	129	50	50	18	5	32	38	59	23	15	35	M14			1.5×60°	1
SB12A2	129	50	50	18	6	32	38	59	23	15	34	M14			3.0×60°	1
SB12A2-127	129	50	127	18	6	32	38	59	23	15	111	M14			3.0×60°	1
SB12A1T	129	50	50	18	5	39	30	60	23	15	30	M14			1.5×60°	1
SB12A1T090	129	50	90	18	5	39	30	60	23	15	70	M14			1.5×60°	1
SB12N1	111	50	50	21	4	21	30	60	25	17	33	M16			1.5×60°	1
SB12N1-090	111	50	90	21	4	21	30	60	25	17	73	M16			1.5×60°	1
SB12N1T	111	50	50	21	4	21	30	60	25	17	33	M16			1.5×60°	1
SB15C1	165	62	66	22	8	37	43	85	32	21	42	M20			1.5×60°	1
SB15A1	156	62	70	22	8	36	60	60	32	21	45	M20			1.5×60°	1
SB15A1-110	156	62	110	22	8	36	60	60	32	21	85	M20			1.5×60°	1
SB15A2	156	62	70	22	9	36	60	60	32	21	45	M20			3.0×60°	1
SB15AQ	129	50	50	18	6	32	38	59	23	15	34	M14			3.0×60°	1
SB15C1T	165	62	66	22	8	37	43	85	32	21	42	M20			1.5×60°	1
SB15N1	135	50	60	25.5	5	26	43	66	32	21	39	M20			1.5×60°	1
SB15N1-110	135	50	110	25.5	5	26	43	66	32	21	89	M20			1.5×60°	1
SB18A2	180	65	70	25	9	40	60	80	32	21	45	M20			3.0×60°	1
SB18A2-110	180	65	110	25	9	40	60	80	32	21	85	M20			3.0×60°	1
SB24A2	210	75	90	25	9	40	80	90	32	21	65	M20			3.0×60°	1
SB24A2-130	210	75	130	25	9	40	80	90	32	21	105	M20			3.0×60°	1
SB06BB	90	32	30	24	54	36	68						5			3
SB06BB-040	90	32	40	24	54	36	68						5			3
SB08BB	106	37	38	28	64	42	76						14			3
SB08BB-056	106	37	56	28	64	42	76						14			3
SB10BB	125	42	42	31	76	49	88						26			3
SB10BB-060	125	42	60	31	76	49	88						26			3
SB12BB	139	42	50	34	90	49	92						30			3
SB12BB-070	139	42	70	34	90	49	92						30			3
PW-06	67.5	50.8	51	38.07	3.3	15	29.36	23.14	17	11	42.4	M10	8			2
PW-08	74	57	57.47	44.45	3.3	15	34.14	24.86	20	13.5	47	M12				1
PW-10	89.5	70.1	70.2	57.1	3.3	19	44.45	26.05	25	17	59	M16				1
PW-12	108.5	70.1	70.2	57.1	3.3	19	44.45	45.05	25	17	59	M16				1
PW-15	140	76.2	76.5	66.62	3.3	23.9	53.58	62.12	32	21	61.2	M20				1
