Basic encoder mounted NC rotary table
High-precision encoder ensures low maintenance
Basic encoder mounted NC rotary table
- Low maintenance
Eliminates the need for maintenance such as backlash adjustment and pitch error compensation, reducing machine downtime. - Stable machining

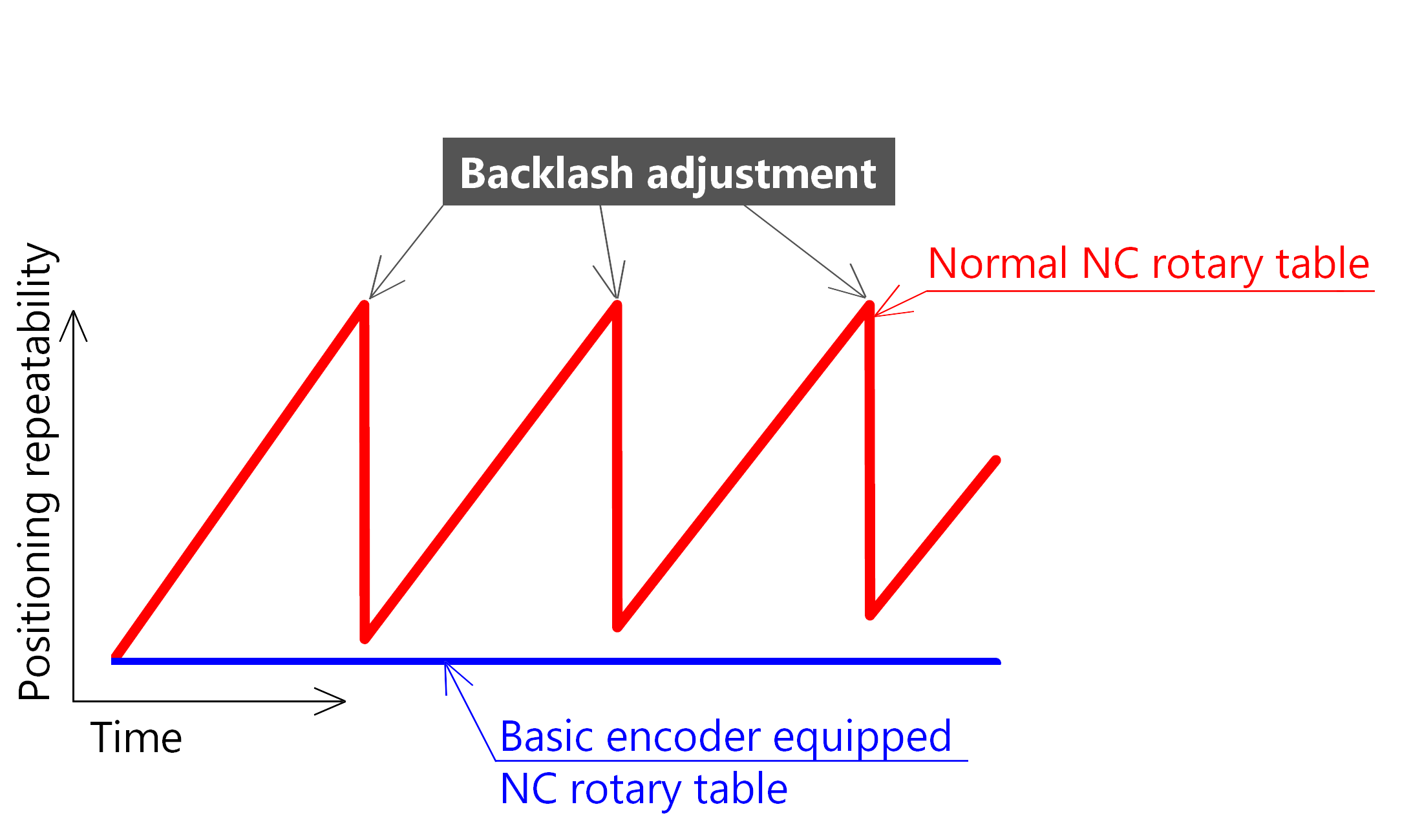

Directly detects the index position of the table, improving positioning repeatability. Even with eccentric-loaded jig work, it can assure of stability. - Excellent cost performance
More affordable than conventional encoder specifications. - Variety of specifications
A rotary joint can be equipped. ※Please contact us for more information.
Product Specifications

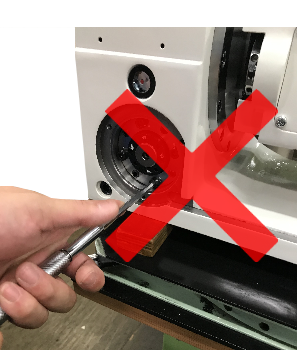

No periodic backlash adjustment or pitch error compensation is required.

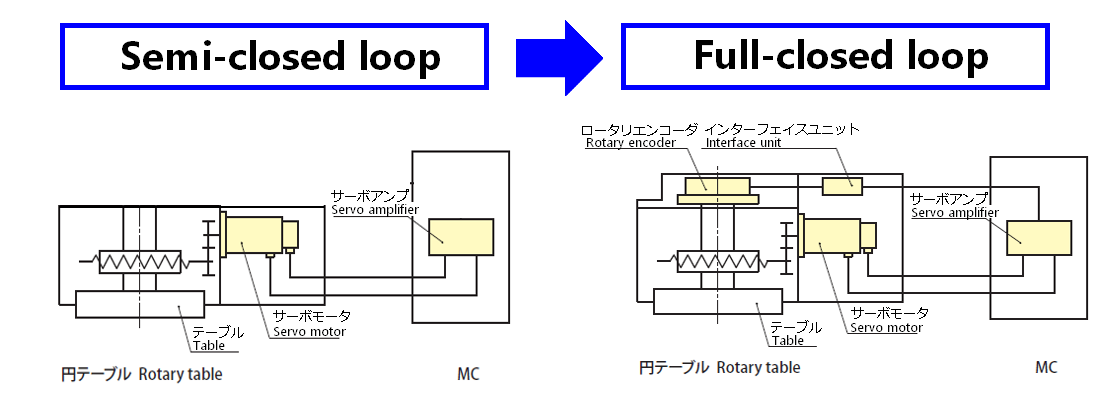

Direct detection of table indexing position with full-closed loop feedback improves positioning repeatability and enables stable indexing even for jigs with unbalanced loads.
