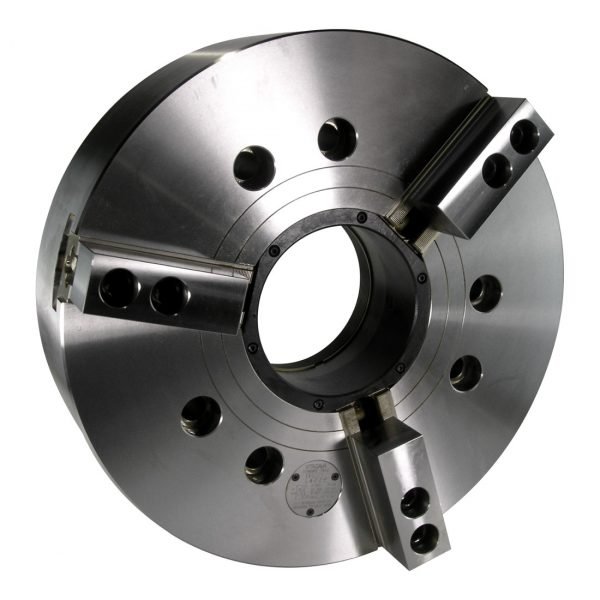

Chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks.
- Through-hole (mm): 166.5
- Gripping range (mm): 530 max, 128 min
- Jaw Stroke (diameter mm): 10.6
- Plunger Stroke (mm): 23
- Max. Input: 70 kN, 7138 kgf
- Max. Gripping Force: 210 kN, 21414 kgf
- Grip force at max speed: 108kN, 11013kgf
- Max Speed: 2000rpm
- Weight (with soft jaws) 241.6kg
- Moment of inertia: 8.08 kg.m2
- Matching cylinder S2816-47A
- Max pressure: 2.37 MPa, 24.2kgf/cm2
- Standard soft jaw: SB15N1
- Standard hard jaw: HB15N1
