Y-RE series
Non-through-hole cylinder
Kitagawa standard closed centre cylinder
Y-RE series
- Built-in check valve and relief valve
- Proximity switches can be attached as an option
- Stroke detection sensors can be installed as an option for even greater safety
*CE correspondence
Product Specifications
| 型 号 | Y0715RE01C | Y1020RE47 | Y1225RE47 | Y1530RE47 | Y2035RE47 | |
|---|---|---|---|---|---|---|
| 贯通孔径 (mm) | - | - | - | - | - | |
| 活塞行程 (mm) | 15 | 20 | 25 | 30 | 35 | |
| 活塞面积 (cm2) | 推动侧 | 42 | 84 | 120 | 174 | 312 |
| 拉动侧 | 37 | 79 | 113 | 160 | 290 | |
| 拉杆 (kN) | 推动侧 | 15.9 | 31 | 45 | 65 | 117 |
| 拉动侧 | 13.9 | 29 | 42 | 60 | 108 | |
| 最大工作压力 (MPa) | 4 | 4 | 4 | 4 | 4 | |
| 容许最高回转速度 (min-1) | 6000 | 6000 | 6000 | 5500 | 5500 | |
| 转动惯量 (kg･m2) | 0.003 | 0.013 | 0.023 | 0.048 | 0.098 | |
| 总泄漏 (L/min) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| 重量 (kg) | 4.5 | 7.6 | 10.5 | 14 | 22.5 | |
| 外形图 |  | | | | | |
| DXF |  | | | | | |
| DWG |  | | | | | |

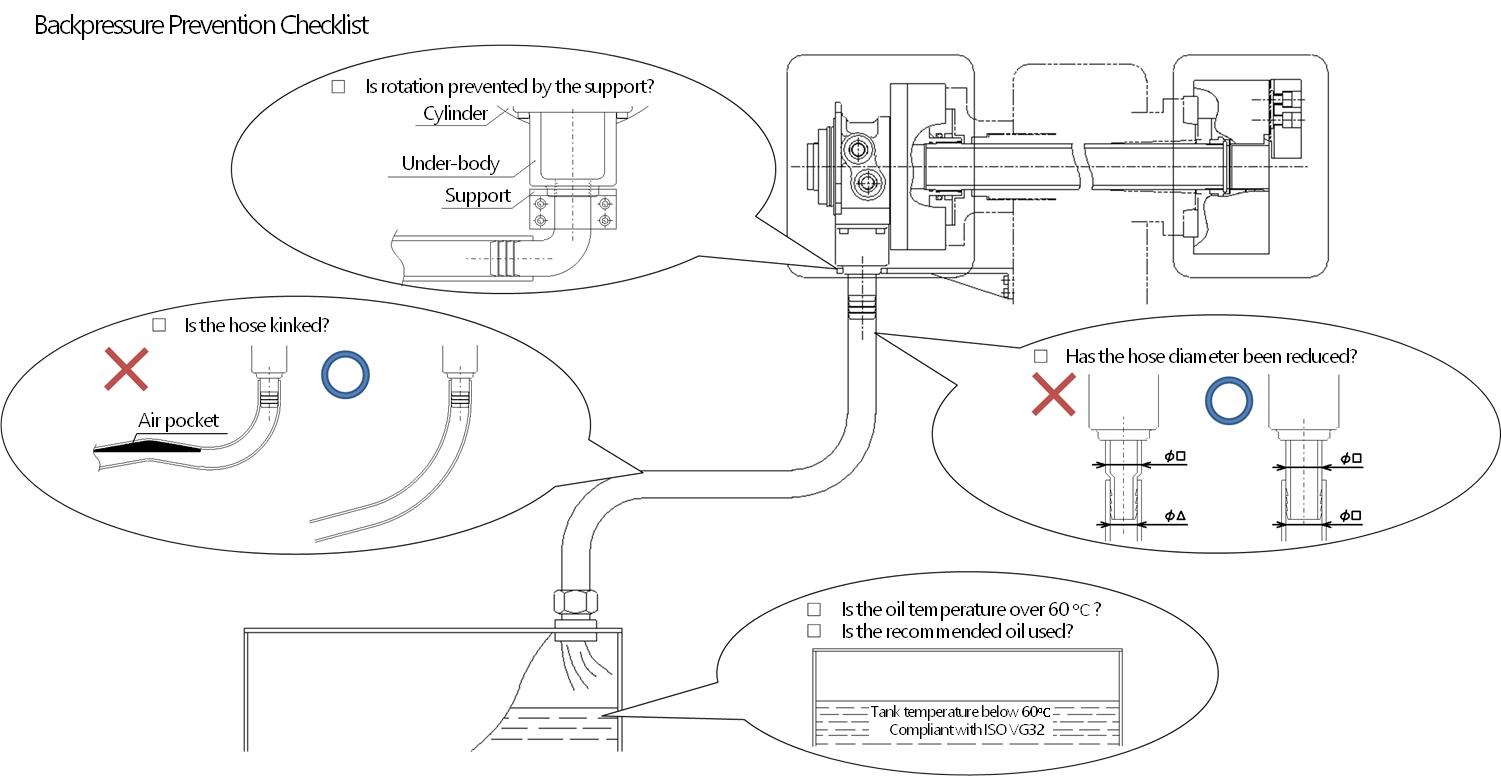

【Important】Please install the return piping so that backpressure does not occur, referring to the following checklist. Click on the image to enlarge it.
All data and specifications are subject to change without notice. Please consult us for the latest details, technical data and/or specifications to confirm requirements.
