BM Series Boring Mill Jaws

Typically used in conjunction with face plates, Boring
Mill Jaws give you the flexibility to build a multi-jaw
large workholding system designed to grip round or
irregular shaped parts.

• Build a large 3, 4, 6 or even 7 jaw
workholding system
• Suitable for large Vertical turning lathes, boring
machines, milling machines and jig installations
• Used in conjunction with our FBK series
faceplates up to 3 meters in diameter
• Contact us to discuss your requirements

[contact-form-7 id=”10540″ title=”Product Page Contact”]

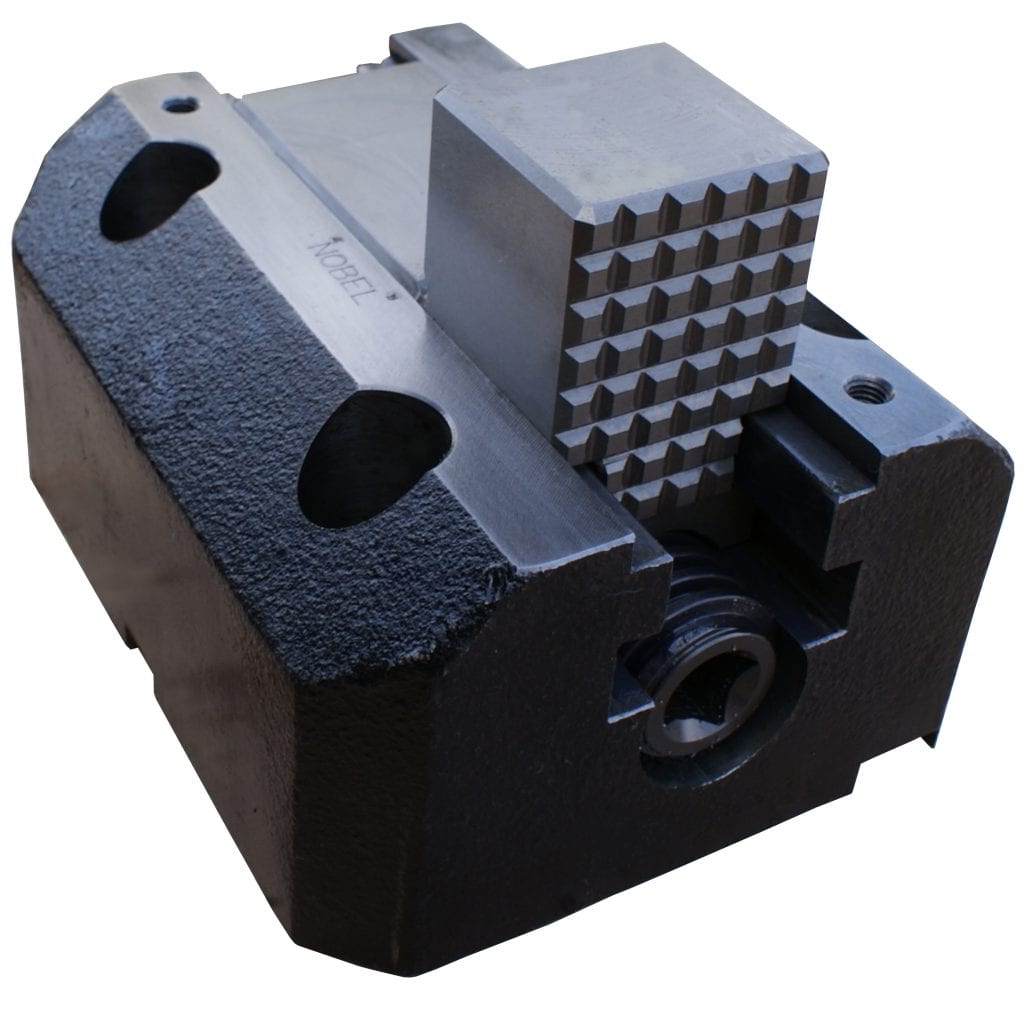

BM-3T

Jaw Type: Solid Jaw

Gripping force: 29kN

Input torque: 392 N・m

Weight: 19kg

Standard Accessory: T-handle

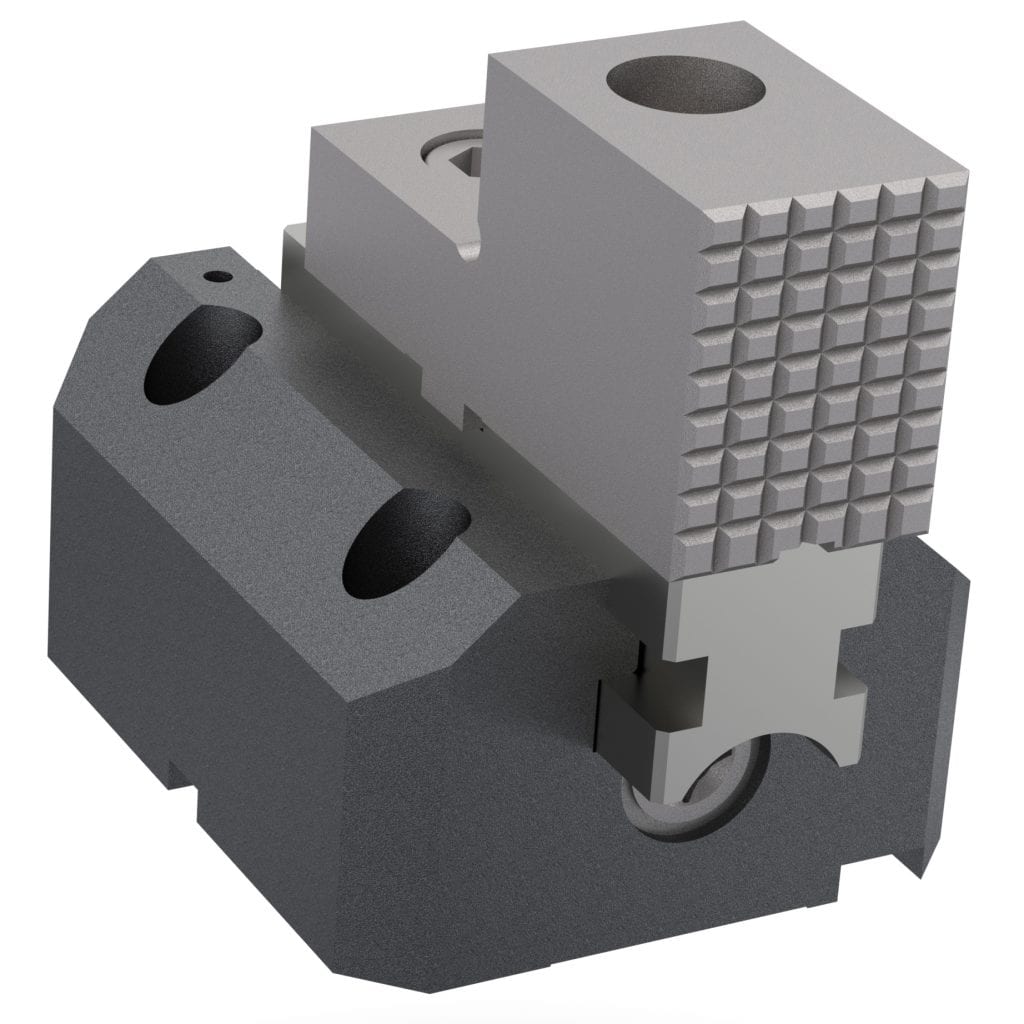

BM-3T-2P

Jaw Type: 2-Piece Jaw

Gripping force: 29kN

Input torque: 392 N・m

Weight: 21kg

Standard Accessory: T-handle

Optional Soft Jaw: SJ-155

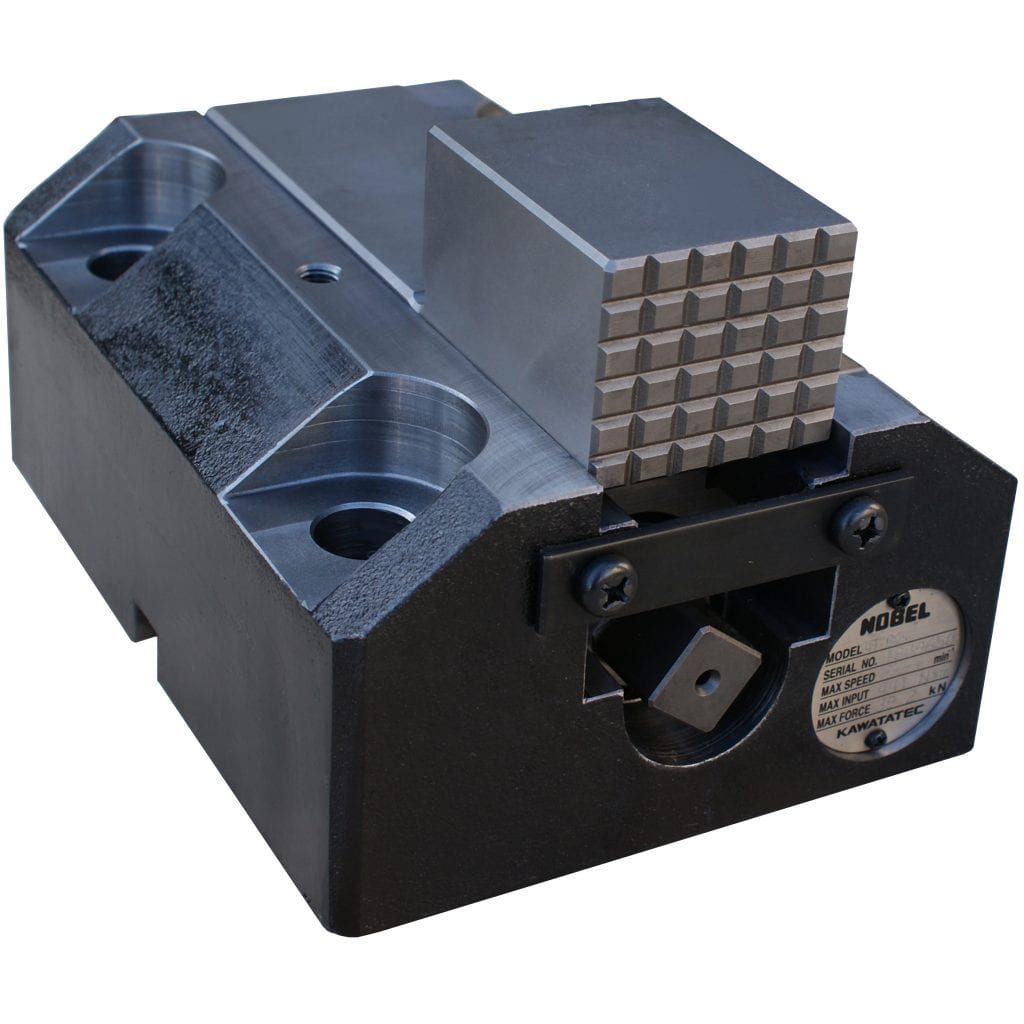

BM-4T

Jaw Type: Solid Jaw

Gripping force: 39kN

Input torque: 441 N・m

Weight: 26 kg

Standard Accessory: Ratchet handle (19D) Socket SKB22B19B

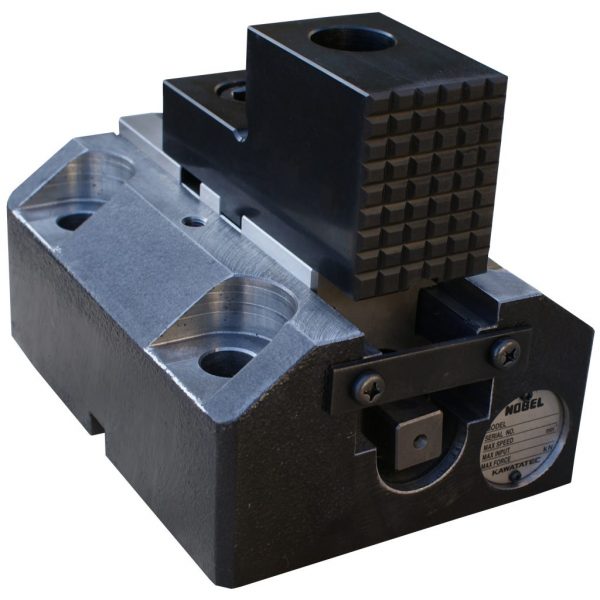

BM-4T-2P

Jaw Type: 2-Piece Jaw

Gripping force: 39kN

Input torque: 441 N・m

Weight: 28 kg

Standard Accessory: Ratchet handle (19D) Socket SKB22B19B

Optional Soft Jaw: SJ-155

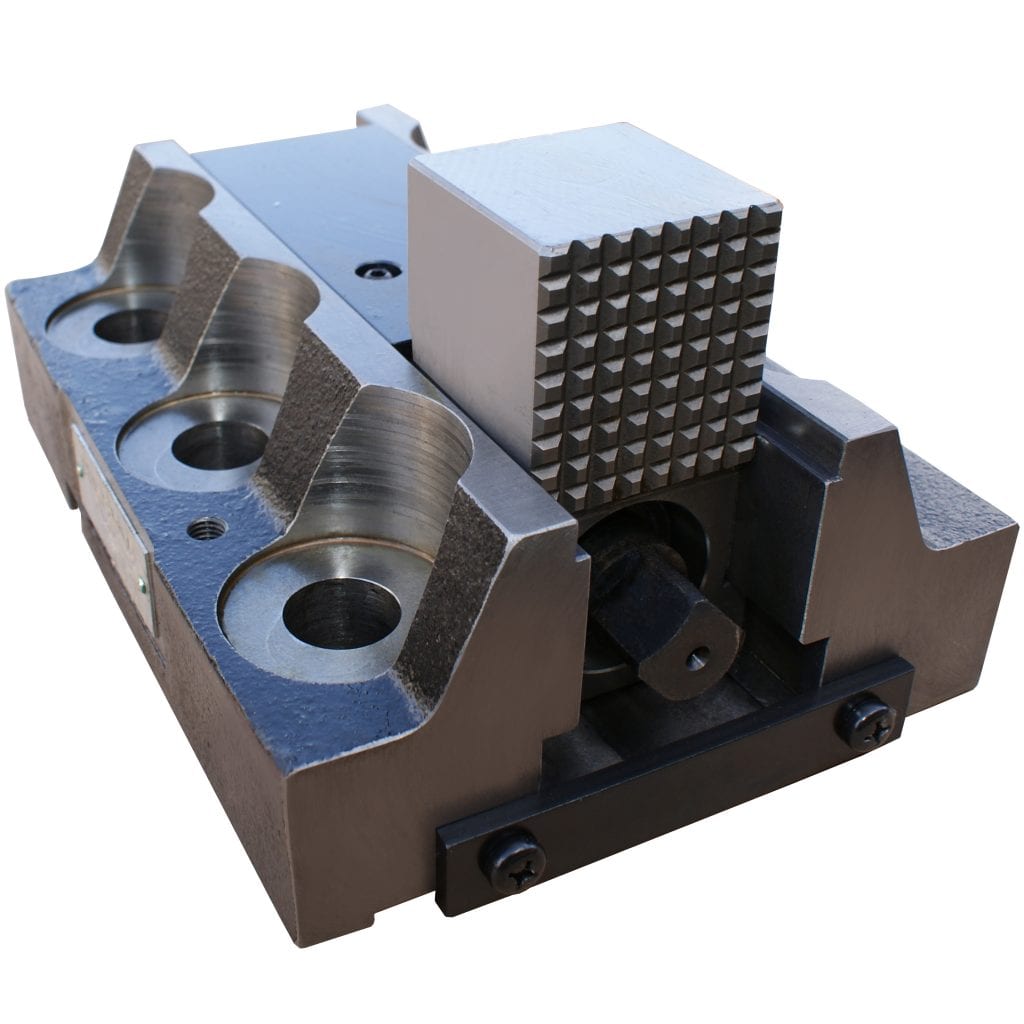

BM-6T

Jaw Type: Solid Jaw

Gripping force: 59kN

Input torque: 686 N・m

Weight: 30 kg

Standard Accessory: Ratchet handle (19D) Socket SKB22B19B

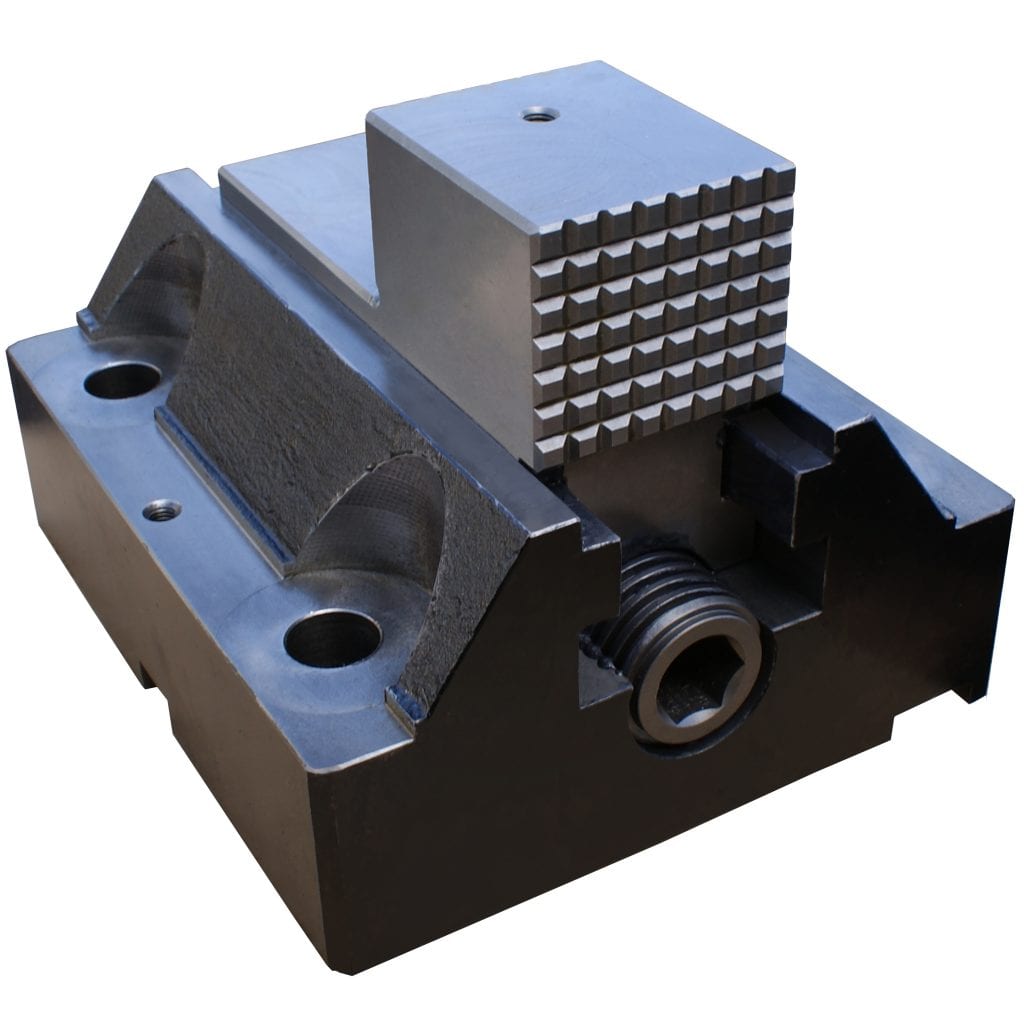

BM-7T

Jaw Type: Solid Jaw

Gripping force: 68kN

Input torque: 735 N・m

Weight: 55 kg

Standard Accessory: Ratchet handle (19D) Socket SKB26D25.4B

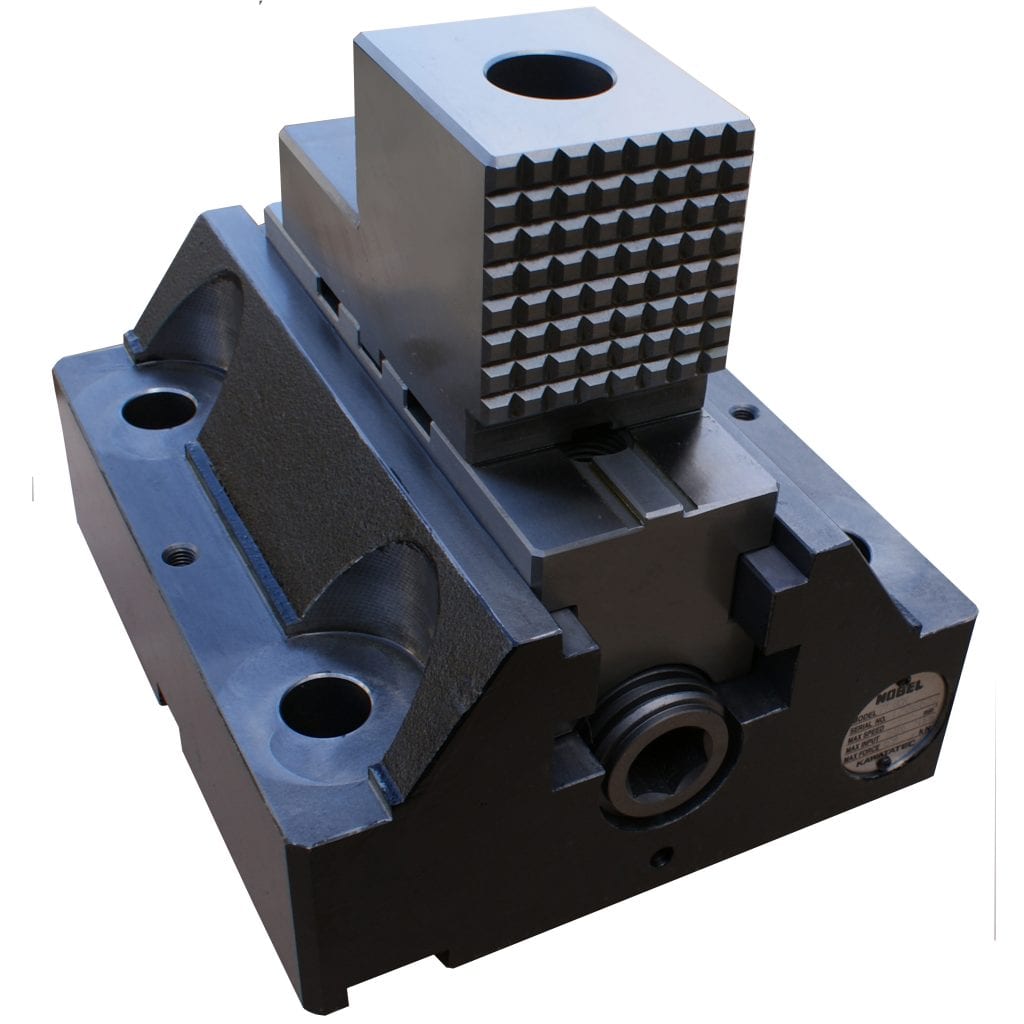

BM-7T-2P

Jaw Type: 2-Piece Jaw

Gripping force: 68kN

Input torque: 735 N・m

Weight: 60 kg

Standard Accessory: Ratchet handle (19D) Socket SKB26D25.4B

Optional Soft Jaw: SJ-170
