NC rotary table for Grinding centre
Excellent dust resistance in machining
Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing.
NC rotary table for Grinding centre
- Effective for use in a dusty environment such as grinding, glass processing, and ceramic processing
- Shut out particles such as cutting powder and polishing powder from entering the main body by using special seals and air purges
- Purge structure with low air consumption (0.3L/min)
- Seal structure with low heat generation
- Long-life seal
- Structure that makes cleaning and replacement of seals easy
- Thin body
- Patent pending
Product Specifications

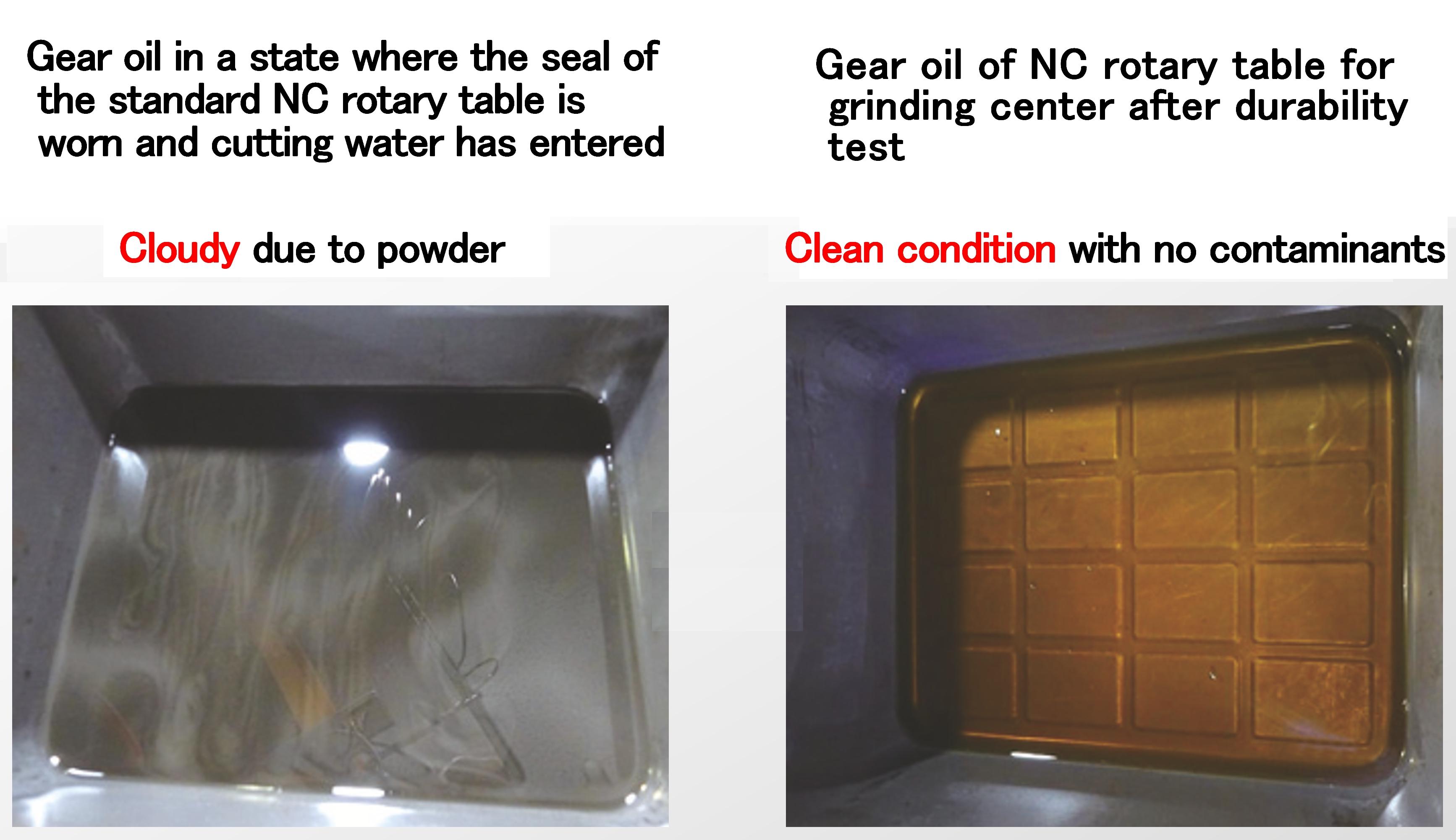

Passed the durability test of 1 million cycles* in a slurry mixed with silicon carbide and alumina
* One cycle consists of forward 180°, forward 180°, reverse 180°, and reverse 180°.
Applicable NC rotary table

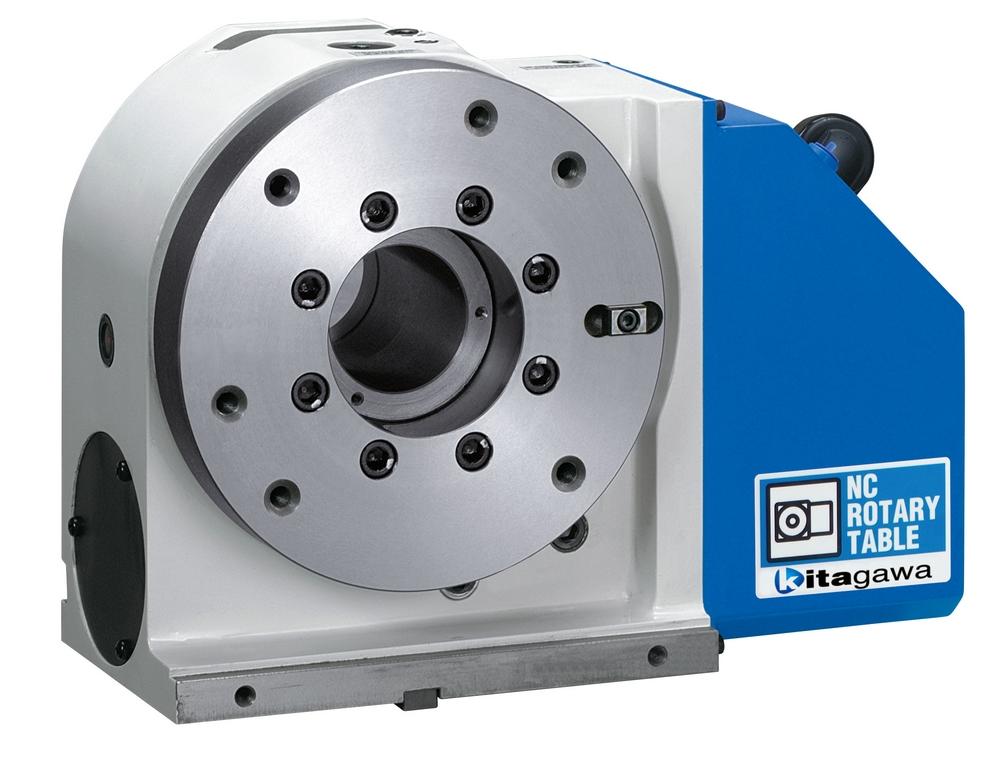

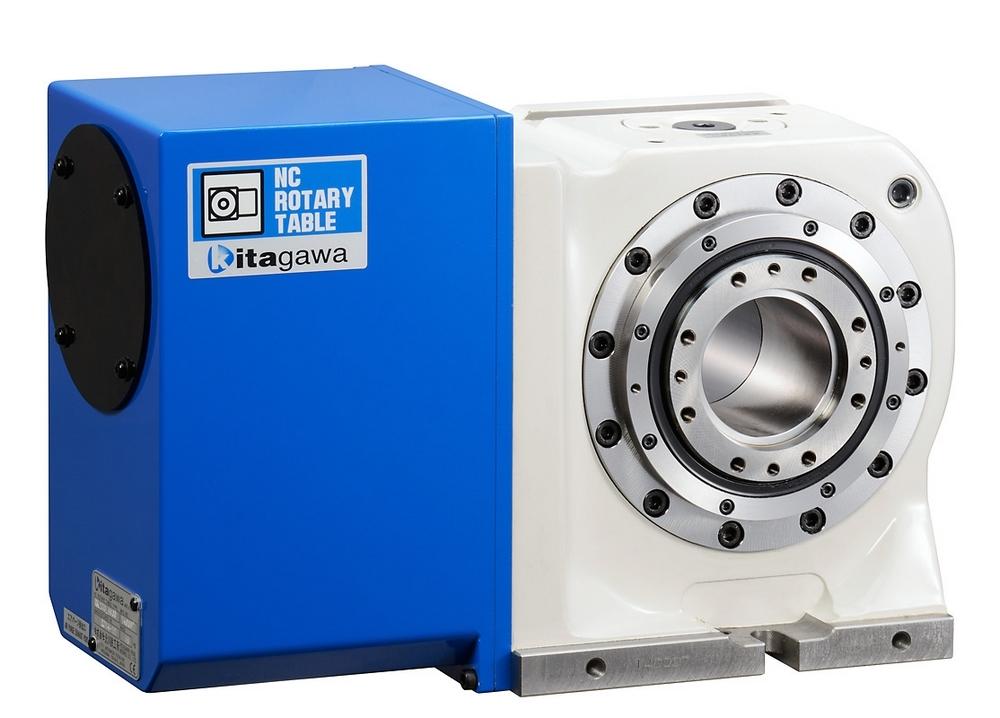

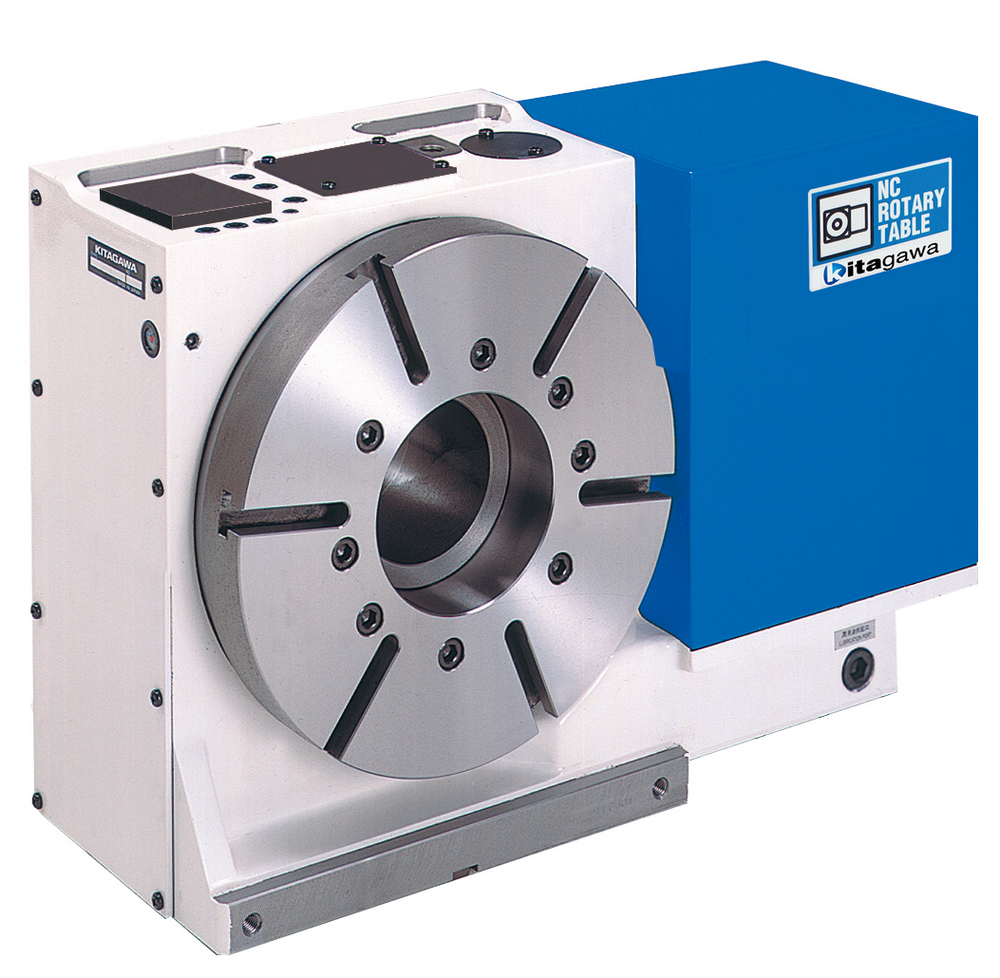

| MR200, 250, 320 | RK201 | TR400 |
|---|---|---|
 |  |  |

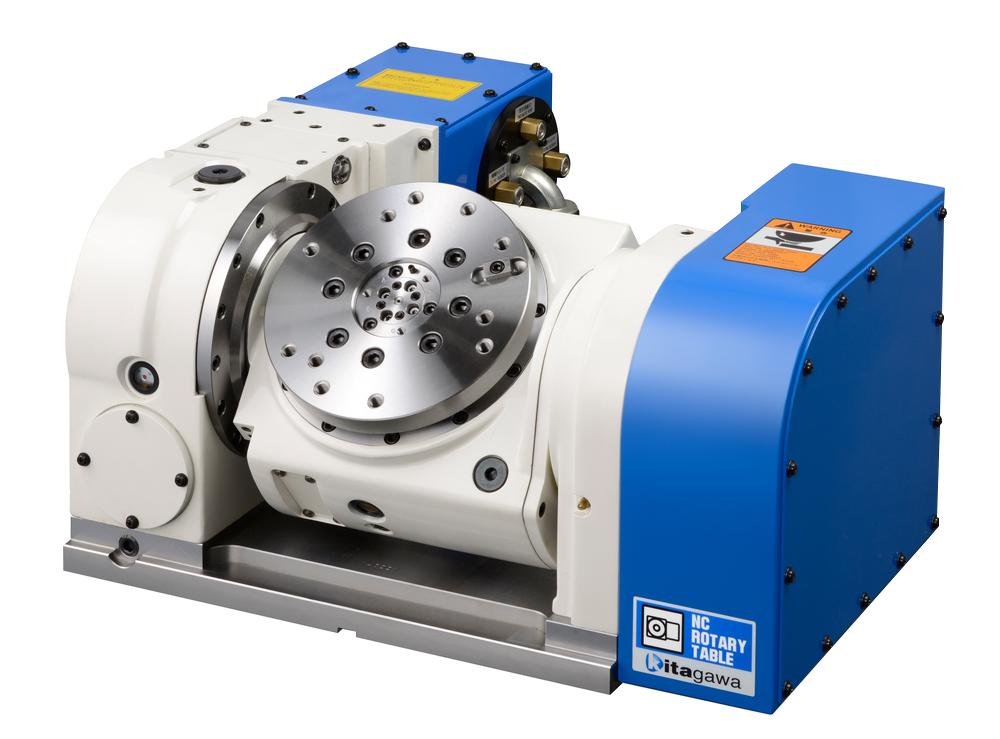

| TT182, 200 | RKT500 | |
 |  |
*Dimensions and specifications may differ from the base model. Please inquire when making inquiries.
*The rotary joint may differ from the standard, so please contact us.
All data and specifications are subject to change without notice. Please consult us for the latest details, technical data and/or specifications to confirm requirements.
