Tailstock Manual
Supports long work pieces securely
Tailstock Manual
- Removable carbide centre
- Clamp handle can be installed on left or right side
- Notch type hard wheel
Product Specifications
Manual Tailstock
| Model | RS100RN | MR120RN | MR160RN | MR200RN | MR250RN | MR320RN | ||
|---|---|---|---|---|---|---|---|---|
| Net weight (kg) | 8 | 9 | 10 | 16 | 20 | 24 | ||
| Matching NC rotary table | RS100 | MR120 | MR160 MX160 CK160(R) | MK200 MR200 GT200 | MK250 MR250 GT250 | MR320 GT320 | ||

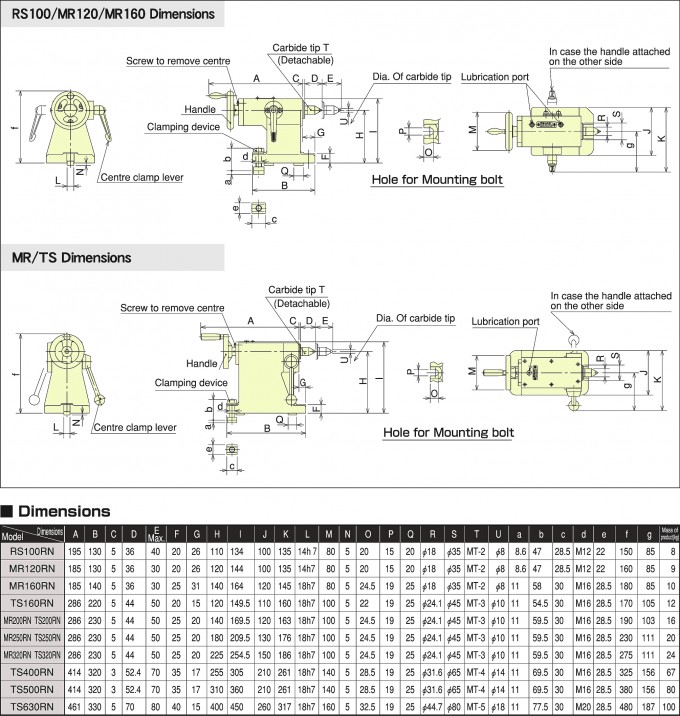

| Outline drawing | 2D |  | | | | | | |
| TIFF |  | | | | | | ||
| DXF |  | | | | | | ||
| DWG |  | | | | | | ||
| 3D | Parasolid |  | | | | | | |
| STEP |  | | | | | | ||
Manual Tailstock
| Model | TS160RN | TS200RN | TS250RN | TS320RN | ||
|---|---|---|---|---|---|---|
| Net weight (kg) | 12 | 16 | 20 | 24 | ||
| Matching NC rotary table | TMX160 TBX160 | TMX200 TBX200 TUX200 | TMX250 TBX250 TUX250 | TRX320 TBX320 TUX320 | ||
| Outline drawing | 2D | | | | | |
| TIFF | | | | | ||
| DXF | | | | | ||
| DWG | | | | | ||
| 3D | Parasolid | | | | | |
| STEP | | | | | ||
Manual Tailstock
| Model | TS400RN | TS500RN | TS630RN | ||
|---|---|---|---|---|---|
| Net weight (kg) | 67 | 80 | 100 | ||
| Matching NC rotary table | TR400 | TR500 | TR630 | ||
| Outline drawing | 2D | | | | |
| TIFF | | | | ||
| DXF | | | | ||
| DWG | | | | ||
| 3D | Parasolid | | | | |
| STEP | | | | ||
All data and specifications are subject to change without notice. Please consult us for the latest details, technical data and/or specifications to confirm requirements.
