Lightweight and compact style pneumatic stationary air cylinders with closed centers that are versatile for many workholding applications.
[contact-form-7 id=”10540″ title=”Product Page Contact”]
SPECIAL FEATURES
- Compact and lightweight design (low profile for clearance)
- Versatile for many workholding applications
- Easy setup and installation for MC applications
- Alloy body
- Low maintenance
SPECIFICATIONS
| Model | Unit | YS1415K | YS1820K | YS2220K |
| Piston Stroke | in. | 0.591 | 0.787 | 0.787 |
| Max. Air Pressure | psi | 101 | 101 | 101 |
| Max. Hyd. Pressure | psi | 217 | 217 | 217 |
| Max. Draw Bar Pull Force at Air Pressure .6 MPa | kN (kgf) | 8.1 (826) | 14.6 (1489) | 20.8 (2121) |
| Max. Draw Bar Push Force at Air Pressure .6 MPa | kN (kgf) | 8.5 (867) | 15.1 (1540) | 21.4 (2182) |
| Max. Draw Bar Pull Force at Hydraulic Pressure 1.5 MPa | kN (kgf) | 20.1 (2050) | 36.5 (3722) | 51.9 (5292) |
| Max. Draw Bar Push Force at Hydraulic Pressure 1.5 MPa | kN (kgf) | 20.8 (2121) | 37.7 (3844) | 53.6 (5466) |
| Net Weight | lb. | 33 | 48 | 85 |

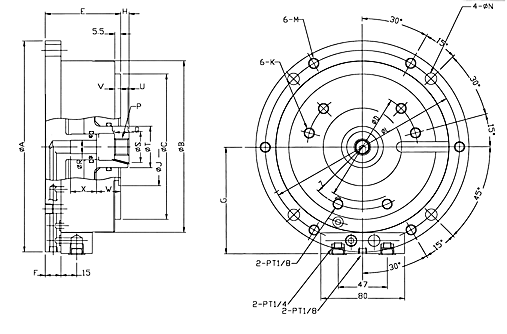

DIMENSIONAL DRAWINGS
DIMENSIONS
| Model | YS1415K | YS1820K | YS2220K |
| Diameter A(h7) | 7.992 | 9.764 | 11.811 |
| Diameter B | 6.497 | 8.268 | 10 |
| Diameter C(h7) | 5.512 | 6.693 | 8.661 |
| Diameter D | 4.126 | 5.252 | 6.748 |
| E | 2.835 | 3.622 | 3.937 |
| F | 0.591 | 0.591 | 1.591 |
| G | 4.055 | 4.941 | 5.807 |
| H max. | 0.472 | 0.787 | 0.394 |
| H min. | -0.118 | 0.000 | -0.393 |
| Diameter J | 2.953 | 3.937 | 3.937 |
| K | M10x17 | M12x24 | M16x24 |
| Diameter L | 7.283 | 9.055 | 11.024 |
| M | M10 | M10 | M12 |
| N | 0.433 | 0.433 | 0.512 |
| P | M16x2.0 | M18x2.5 | M22x2.5 |
| Q | 0.709 | 1.201 | 1.122 |
| Diameter R | 0.512 | 0.512 | 0.512 |
| Diameter S | 1.339 | 1.417 | |
| Diameter T | 1.575 | 1.575 | 1.772 |
| U | 0.512 | 0.492 | |
| V | 0.079 | 0.394 | 0.472 |
| W | 0.906 | 1.398 | 1.732 |
| X | 0.984 | 1.220 | 1.339 |
| Y | 1.299 | 1.299 | 1.299 |
| Z | 2.374 | 3.150 | 3.740 |
