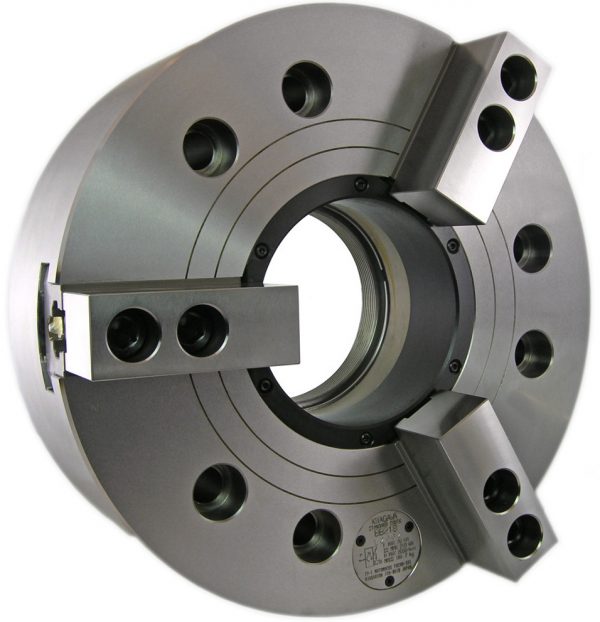

450mm Ø three jaw large through hole power chuck.
- Grip Range (mm):  450 max, 128 min
- Jaw Stroke (diameter mm): 10.6
- Max Gripping Force (kN): 210
- Lubrication nipple on each master jaw
Kitagawa’s leading large through hole power chuck.
Chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks.

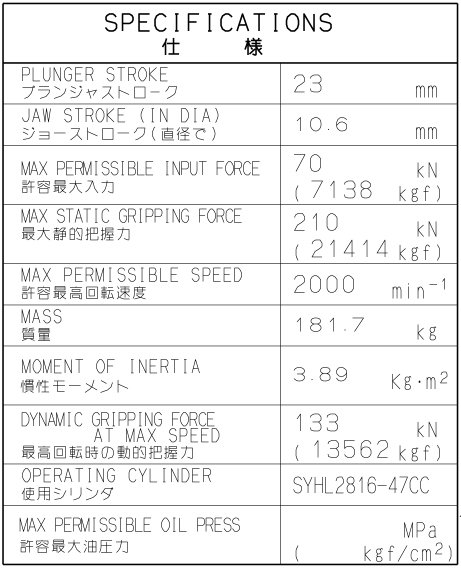

- Through-hole (mm): 166.5
- Gripping range (mm): 450 max, 128 min
- Jaw Stroke (diameter mm): 10.6
- Plunger Stroke (mm): 23
- Max. Input: 70 kN, 7138 kgf
- Max. Gripping Force: 210 kN, 21414 kgf
- Grip force at max speed: 133 kN, 13562 kgf
- Max Speed: 2000rpm
- Weight (with soft jaws) 171kg
- Moment of inertia:Â 3.65 kg.m2
- Matching cylinder S2816-47A
- Max pressure: 2.12 MPa, 21.2kgf/cm2
- Standard soft jaw: SB15N1
- Standard hard jaw: HB15N1
