PWS06 Power Wing Work Gripper

Three-jaw power wing work grippers secure the workpiece by pulling back and locking into place. Suitable for rough machining, OP-10 or OP-20.

IDEAL FOR 3 TO 5-AXIS MACHINES
Three-jaw power wing work grippers secure the workpiece by pulling back and locking into place.
Suitable for rough machining, OP-10 or OP-20.

View the PUES06 inner diameter pull lock work gripper – locks the workpiece in place by pulling back and clamping the inner diameter. Suitable for finish machining with high accuracy performance.

[contact-form-7 id=”10540″ title=”Product Page Contact”]

SPECIAL FEATURES

  • Built-in cylinder drastically saves costs – no need for a separate actuator
  • Compact and easy to install on standard column of the machine – total height is greatly reduced with a built-in cylinder.
  • Can be mounted on an NC Rotary Table
  • Versatile for many workholding applications
  • Pull Down gripping action for optimal accuracy & length control
  • Seating detection system as option to ensure correct part location.
  • Low maintenance

Kitagawa-NorthTech power wing work grippers are manufactured from high grade alloy steel. All guide surfaces are hardened and ground to assure consistent accuracy and performance.

Standard Equipment: Chuck assembled with adapter, chuck mounting bolts, soft top jaws, T-nuts and jaw mounting bolts with wrench, draw nut wrench.

SPECIFICATIONS

MODELUNITPWS06
Plunger Strokein.0.437
Jaw Stroke (Diameter)in.0.303
Gripping Force – Pneumatic at 0.6MPa(6kgf/cm2)kN (kgf)19(1937)
Gripping Force – Hydraulic at 1.3MPa(13kgf/cm2)kN (kgf)53(5404)
Maximum Working Pressure Mpa(kgf/cm2) – Pneumatic 0.7(7)
Maximum Working Pressure Mpa(kgf/cm2) – Hydraulic 1.3(13)
Maximum Allowable Pressure Mpa(kgf/cm2)0.2(2)
 Gripping Range – External Diameterin.ø0.05 – 4.724
 Gripping Range – Internal Diameterin.ø2.755 – 5.984
 Weightlbs.52

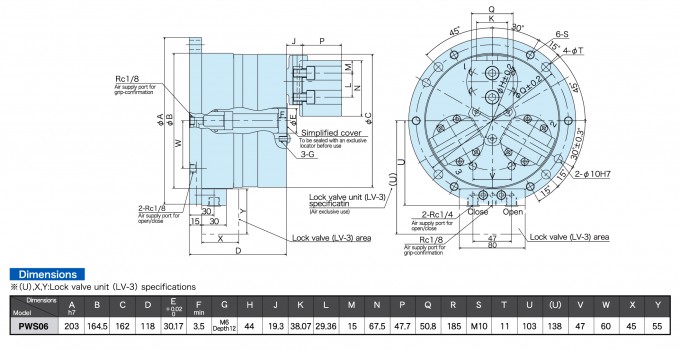

DIMENSIONS (DIMENSIONS IN INCHES)
